Double Axis Roller Linear Guide

A double axis roller linear guide uses a roller carriage running along two steel shafts supported by a common rail body. For the built-in arrangement described here, the shafts are integrated into an aluminum alloy profile, providing a defined travel path for a moving carriage. The assembly can be considered for machine layouts requiring guided movement of panels, tooling carriers or transfer units.

The rail and carriage should be selected as a compatible assembly. Required travel, mounting space and load position help determine the appropriate configuration.

When selecting a double axis roller linear guide, provide the required rail length, usable stroke, payload and installation orientation. Include the position of the load relative to the carriage, particularly where the moving assembly extends beyond the rail.

For a new machine, submit a layout drawing showing the available mounting space and carriage attachment points. For an existing installation, provide the original rail and block codes together with photographs and measured dimensions.

The final specification should identify the rail profile, carriage arrangement, mounting dimensions and applicable operating limits. Confirm these details before ordering or releasing the machine design.

Automated Transfer Units

For guided movement of component carriers between workstations. Selection should account for payload, acceleration and loads created during starts and stops.

Cutting and Engraving Equipment

For equipment layouts using a roller-guided moving assembly. Evaluate process forces and required positioning performance before choosing the guide.

Packaging and Printing Equipment

For moving adjustment units or auxiliary assemblies. Check the mounting envelope and exposure to paper dust, packaging debris or cleaning agents.

Sliding Panels and Access Mechanisms

For guided travel of machine covers or access panels. Consider panel weight, operating frequency and any off-centre loading.

Zhejiang Jinshanmen Transmission Technology Co., Ltd. (JSM) is a manufacturer of linear motion components in China, offering linear guides, sliders, ball screws and bearings.

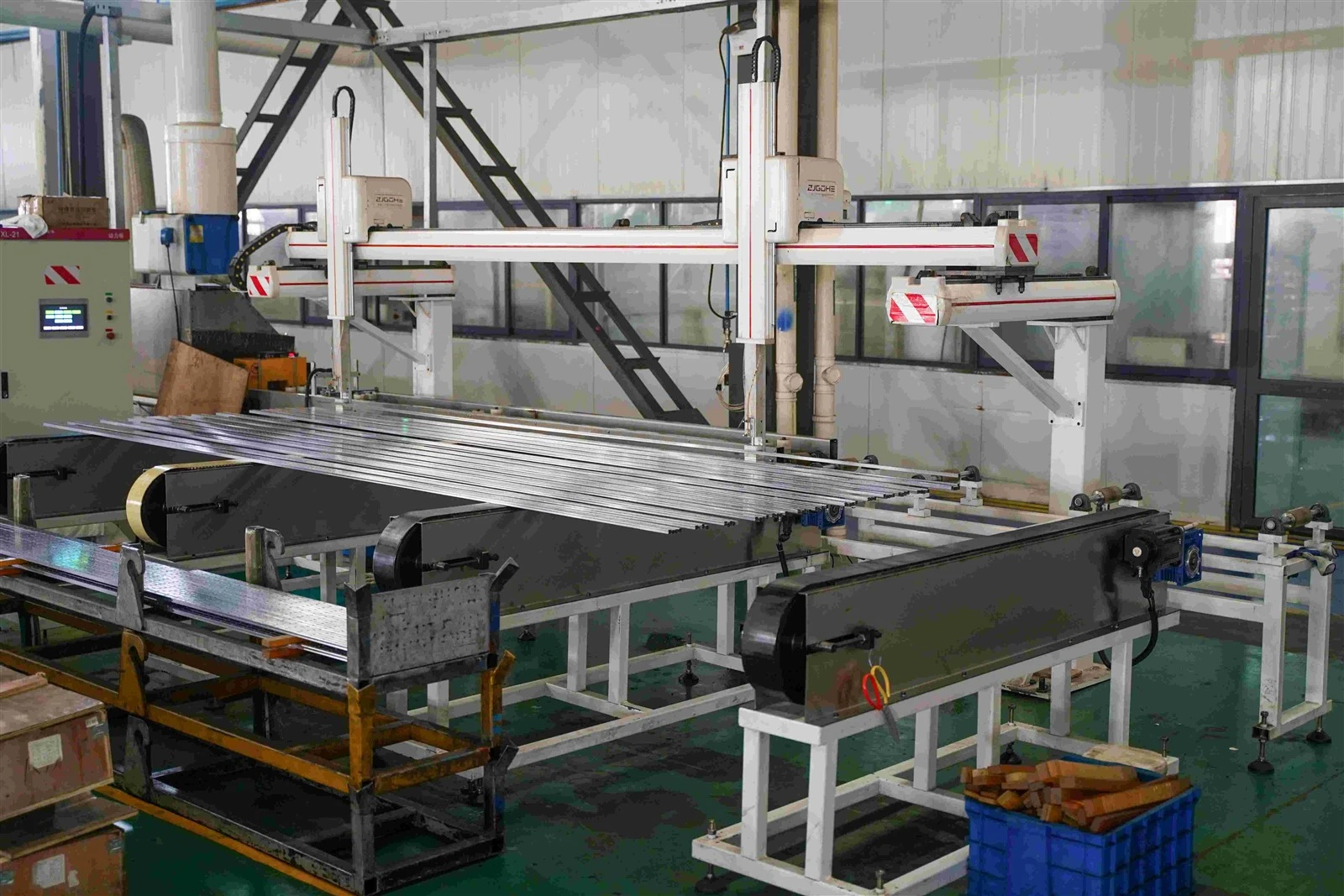

Our approximately 20,000 m² self-owned factory is equipped with precision grinding machines and CNC machining centers. JSM reports an annual output of approximately 800,000 meters of linear guide rails across its manufacturing operations.

Our quality and management systems include ISO 9001, ISO 14001 and ISO 45001. We also provide OEM/ODM services for buyers developing equipment or sourcing components for ongoing production.

For this product inquiry, send your drawing and purchasing requirements so that the proposed configuration, supply scope and documentation can be confirmed before quotation.
