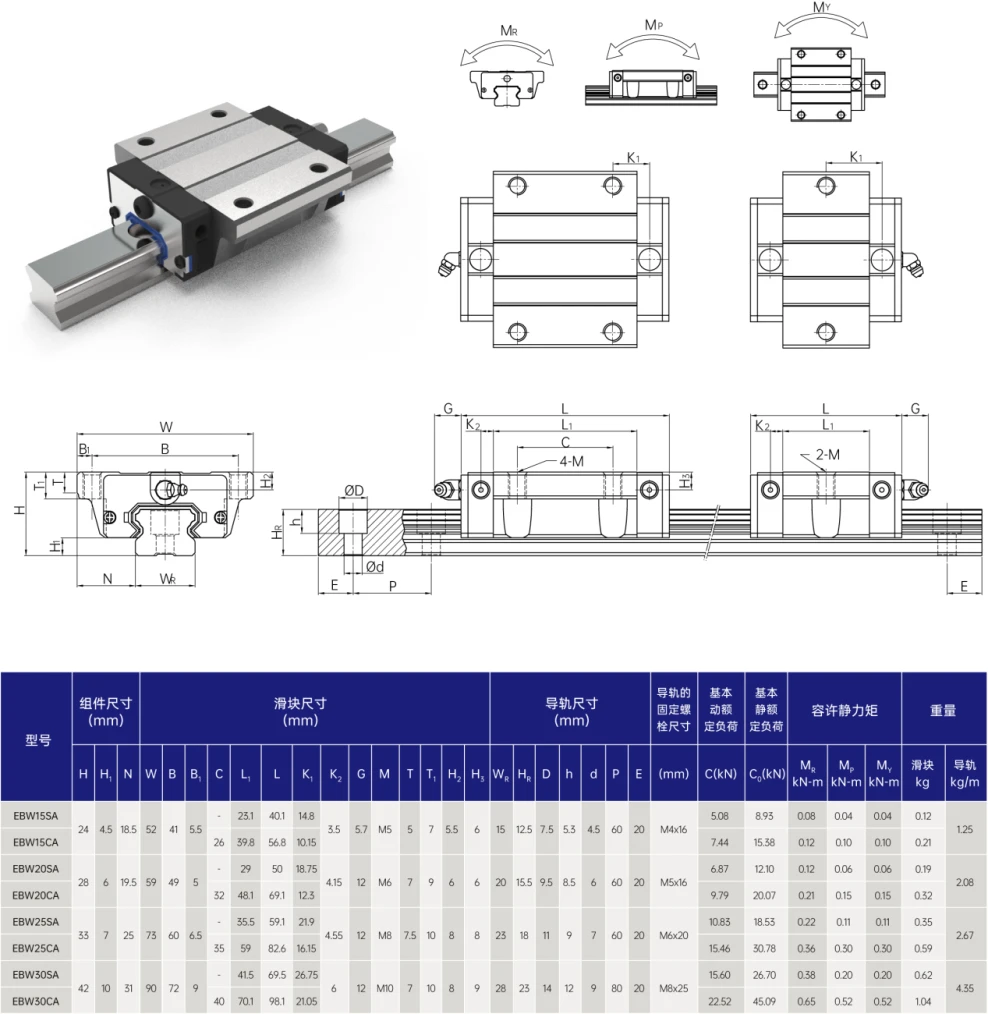

Ultra-low profile linear guide assemblies use the EB series low-assembly-height ball guide design for machinery with limited vertical installation space. Each assembly combines a profiled rail with recirculating ball blocks to guide moving tables, fixture plates and positioning platforms within a compact machine layout.

The range includes square and flange block configurations, with medium-load and heavy-load versions available to suit different installation and loading requirements.

Technical Specifications

Product Features

Four-row ball contact

The EB series uses four rows of ball raceways with 45° contact angles and equal rated load capacity in the upward, downward and lateral directions.

Square and flange blocks

EBH square blocks and EBW flange blocks provide different mounting footprints. Choose the block format according to the available carriage width and fastening access.

Medium-load and heavy-load versions

S and C block versions have different lengths and load ratings. Selection should account for both applied loads and overturning moments.

Ball retention

A ball retainer helps keep the balls in position when the block is removed from the rail, making assembly handling more convenient.

Application Scenarios

product-1448-1086

Compact Automation Equipment

For fixture slides and pick-and-place mechanisms installed beneath worktables or inside compact machine frames.

Inspection and Measuring Equipment

For moving sensor heads, inspection cameras and sample positioning carriages along a defined measurement path.

Electronics Assembly Equipment

For component transfer slides and tooling carriages used between feeding, positioning and assembly stations.

Laser Engraving and Packaging Machinery

For workpiece positioning in laser engraving equipment and feed or transfer axes in packaging machinery.
