Product Overview

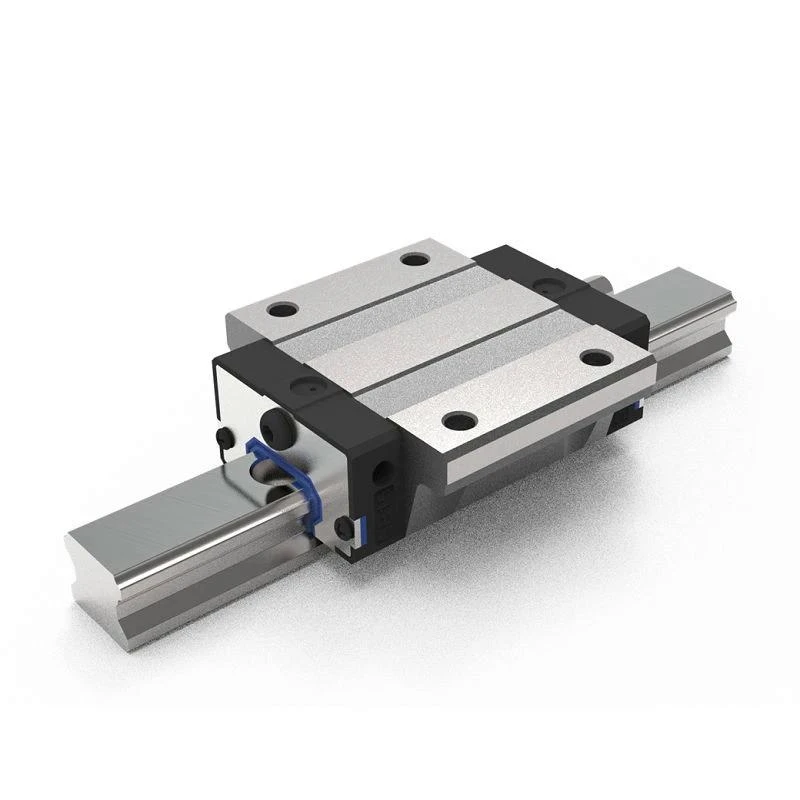

A Low Profile Flange Linear Guide is designed for equipment where compact installation height and stable multi-directional load support are important. JSM's EBW series combines a low-profile assembly with a flange-type slider and a four-row steel-ball rolling system using 45°–45° contact geometry. The guide structure supports loads from different directions and provides a self-aligning function that helps absorb minor mounting-surface deviations.
As a linear guide manufacturer in China, Zhejiang Jinshanmen Transmission Technology Co., Ltd. (JSM) manufactures the EBW series for industrial equipment and OEM applications. The low-profile configuration helps reduce the overall height of the assembled guide system, making it suitable for compact machine structures and applications where installation space is limited.
The EBW series is available in multiple sizes and configurations, with different load ratings, precision grades, mounting arrangements, rail lengths, and material or surface-treatment options. It can be used in machine tools, automated equipment, precision measuring instruments, semiconductor-related equipment, and other industrial systems requiring a space-efficient linear motion guide.
Technical Specifications
Product Features
Four-Direction Load Capacity
The EBW series uses four rows of steel balls with a 45°–45° contact arrangement, supporting loads from four directions with balanced load capacity and rigidity.
01
Self-Aligning Performance
The DF (45°–45°) raceway arrangement allows the guide system to absorb minor mounting-surface deviations through elastic deformation and contact-point movement, helping maintain stable linear motion.
02
Low-Profile Flange Design
The flange-type slider combines a compact assembly height with a practical mounting structure for machines with limited installation space and compact mechanical layouts.
03
Flexible Mounting and Precision Options
EBW configurations support different mounting arrangements and precision grades. Depending on the selected configuration, JSM also provides different preload, material, and surface-treatment options.
04
Applications
CNC & Machining Equipment
Suitable for milling machines, drilling machines, lathes, machining centers, and other machine tools requiring compact linear guidance.
EDM & Wire-Cut Machines
Used in electrical discharge machining and wire-cut equipment where controlled linear travel and stable guide operation are required.

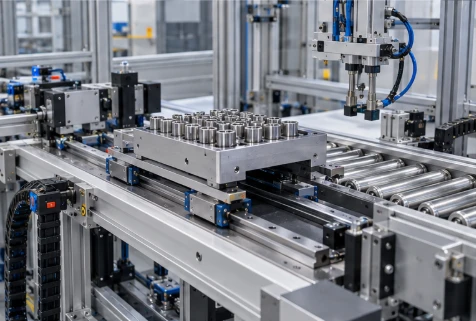

Automation & Material Handling
Applicable to automated equipment, conveyors, material handling systems, and other industrial machines using repeated linear movement within compact layouts.
Precision Measurement & Semiconductor Equipment
Suitable for precision measuring instruments and semiconductor-related equipment where controlled linear travel and compact guide dimensions are required.
JSM supports OEM and ODM requirements for the EBW series, including specified rail lengths, mounting arrangements, precision grades, preload configurations, materials, and surface treatments.
For non-standard machine layouts, customers can provide drawings, existing guide specifications, or installation dimensions for technical review. JSM can evaluate the required configuration and help match the guide to the machine structure before production.
For replacement projects, an existing model, drawing, or key dimensional information can also be used as the basis for configuration review.
About JSM
Zhejiang Jinshanmen Transmission Technology Co., Ltd. (JSM) is a China-based manufacturer specializing in linear guide rails, sliders, ball screws, bearings, and related linear motion components. Established in 2017, JSM provides linear motion products and OEM/ODM support for industrial customers and distributors.
JSM operates a 20,000 m² self-owned manufacturing facility with an annual output of approximately 800,000 meters of linear guide rails. The factory is equipped with CNC precision machining centers and ultra-precision grinding equipment for linear motion component production.
Quality control covers raw materials, production processes, dimensional accuracy, hardness, and finished-product inspection. JSM uses inspection equipment including coordinate measuring machines, image measuring machines, metallographic microscopes, and hardness testers, and operates under ISO 9001, ISO 14001, and ISO 45001 certifications.
For OEM and equipment manufacturers evaluating a Low Profile Flange Linear Guide, JSM provides technical support for configuration based on guide size, rail length, mounting arrangement, precision, preload, material, and operating conditions. Customized linear motion components can also be developed based on customer drawings and technical requirements.
FAQ
Q: 1. What's your MOQ for the low profile flange linear guide?
A: If the required EBW model is available from stock, there is no fixed MOQ for stock orders. For production orders, the minimum quantity can be confirmed according to the selected model, configuration, and order requirements.
Q: 2. How long is your delivery time?
A: Standard production orders typically require 7–15 days after order confirmation. In-stock items can usually be prepared for shipment within 1–2 days. Actual timing depends on the selected model, quantity, and production schedule.
Q: 3. Can I order rails and sliders separately?
A: For applicable interchangeable configurations, the guide rail and slider can be ordered separately. Non-interchangeable configurations should be supplied and used as matched rail-and-slider sets to maintain the required assembly accuracy.
Q: 4. Do you provide samples?
A: Yes. Low-value samples can be provided free of charge with freight collect. A sample charge may apply to higher-value samples. Sample arrangements can be confirmed based on the selected EBW model.
Q: 5. What information should I provide when requesting a quotation?
A: Please provide the required EBW size, rail length, number of sliders, load requirements, mounting arrangement, precision grade, preload, and operating conditions when available. A drawing or existing guide model can also be provided for replacement or machine-matching projects.
