Dust Resistant Linear Guide is an HB-series linear guide assembly equipped with enhanced sealing components to help reduce the entry of dust and machining debris into the carriage. It is intended for machine axes where the standard sealing arrangement requires additional protection.
The guide size, carriage type, accuracy grade and preload are selected according to the equipment's load and positioning requirements. The dust-protection package is specified separately as part of the complete assembly configuration.
Technical Specifications
|
Parameter |
Reference Value / Range |
|
Product Type |
Chrome Plating Linear Guide Rail |
|
Chrome Coating Thickness |
2–5 μm* |
|
Dimensional Accuracy |
0.003–0.03 mm* |
|
Rail Length |
100–4,000 mm* |
|
Operating Temperature |
−20°C to 110°C* |
|
Load Capacity |
0.5–550 kN* |
|
Surface Hardness |
HV700–800* |
|
Wear Resistance |
3 times improvement* |
|
Friction Coefficient |
Approx. 15% reduction* |
*Actual specifications may vary by rail size, slider configuration, surface treatment, and application requirements.
Dust-Protection Configurations
Four enhanced protection packages are listed in the HB-series catalogue:
- SH: Enhanced end wipers, enhanced bottom seals and upper seals.
- ZH: SH configuration with additional metal scrapers.
- DH: Double enhanced end wipers, enhanced bottom seals and upper seals.
- KH: DH configuration with additional metal scrapers.
The upper seals help restrict contamination entering from the rail's top surface and mounting-hole area. Metal scrapers help remove larger particles before they reach the end wipers.
Catalogue-listed compatible sizes are HB20, HB25, HB30 and HB35 in C/H carriage versions, plus HB45C. Additional sealing components can increase carriage length and running resistance, so installation clearance and drive capacity should be checked against the selected configuration.
Applications of Dust Resistant Linear Guide
CNC Machining Equipment
For feed axes and machine slides exposed to cutting chips. The protection package should be selected with reference to chip size, exposure direction and existing machine guarding.

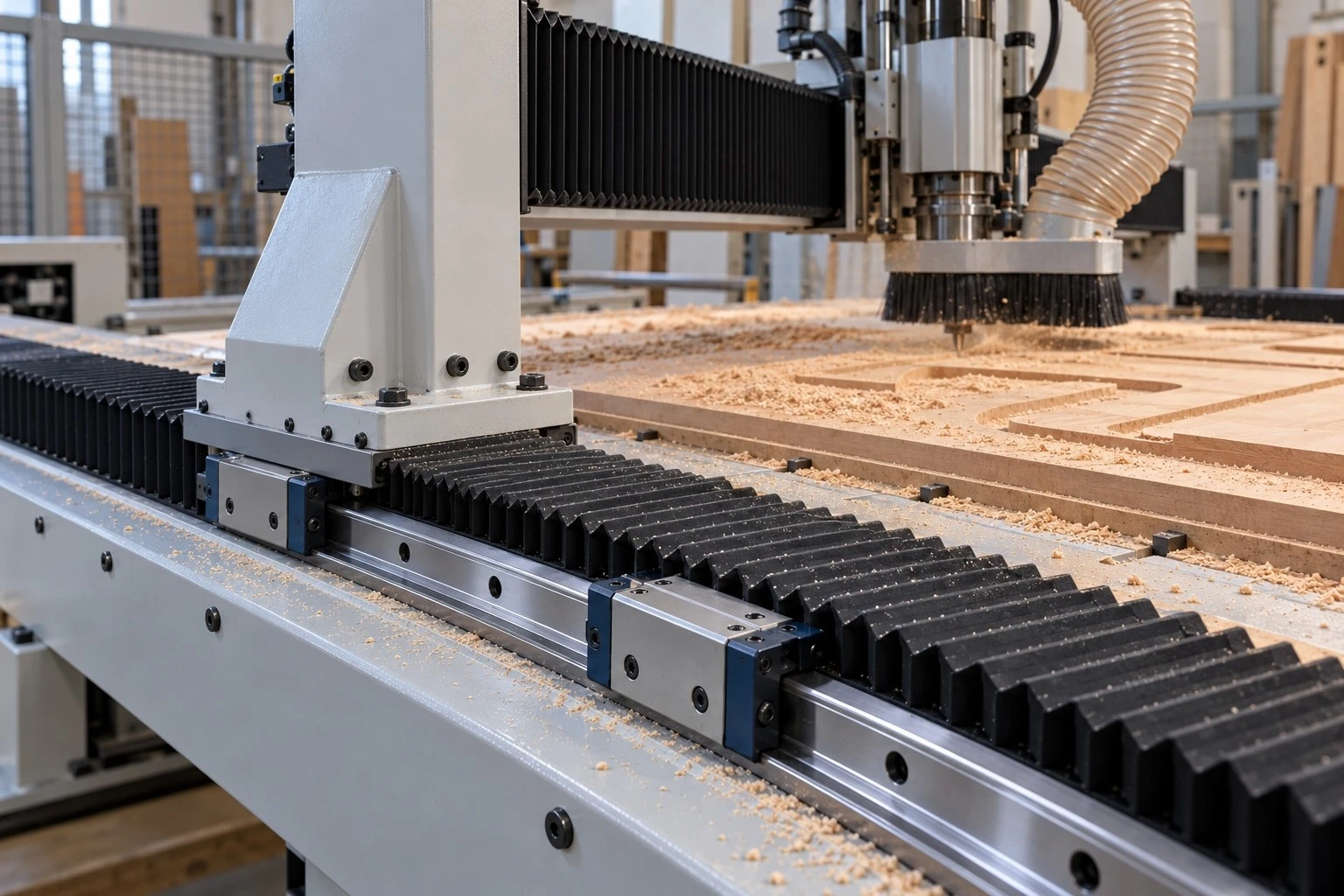

Woodworking Machinery
For feed and positioning mechanisms exposed to sawdust. Dust extraction and external covers may also be required, depending on the amount of dust reaching the rails.

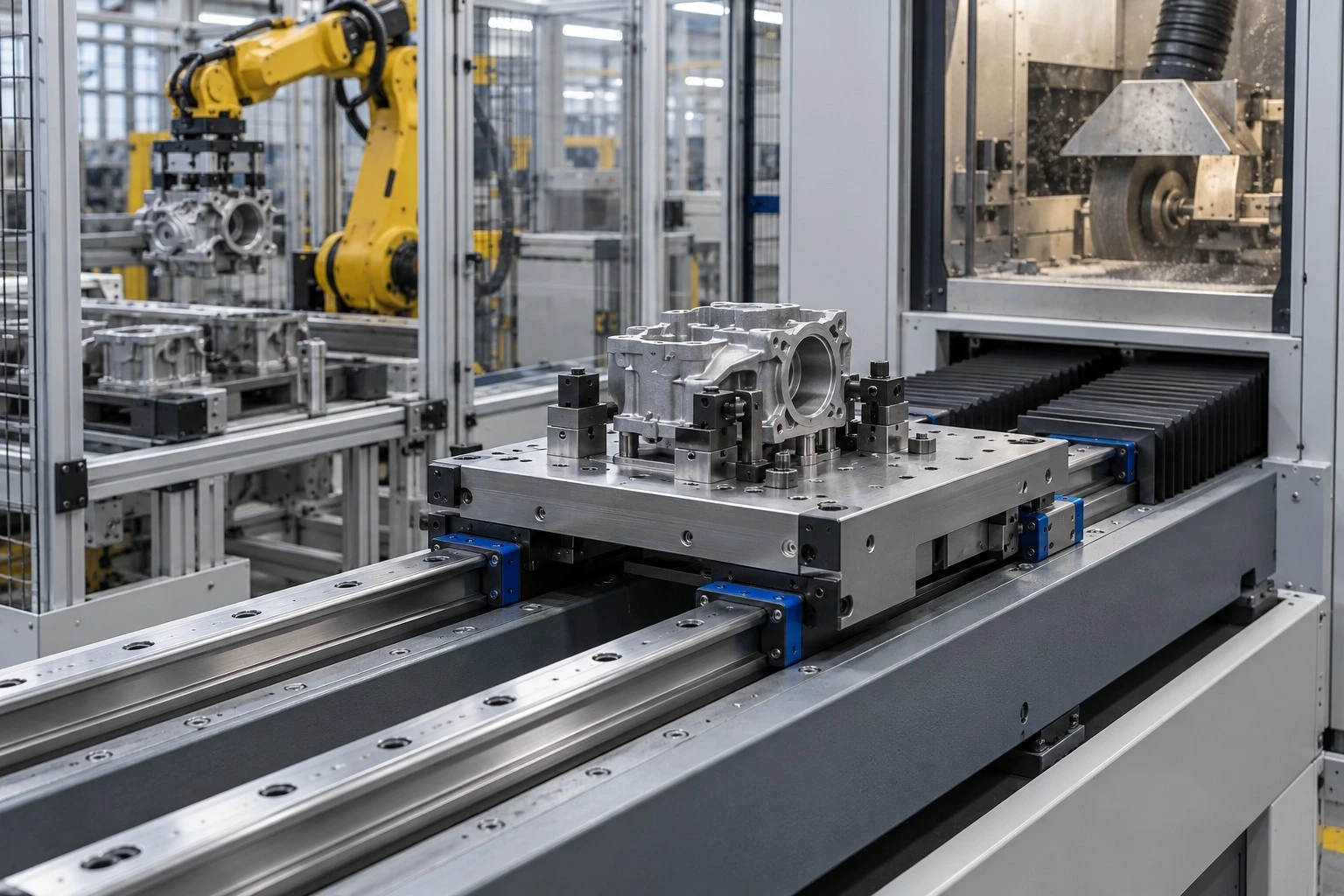

Industrial Automation
For transfer slides and positioning units located near particle-generating processes. Consider travel speed, contamination levels and access for maintenance when selecting the assembly.
Manufactured by JSM
JSM manufactures the Dust Resistant Linear Guide as part of its linear motion product range. Zhejiang Jinshanmen Transmission Technology Co., Ltd. operates a 20,000 m² factory with precision grinding machines and CNC machining centres.
We supply guide rails and carriages and provide OEM/ODM services for equipment manufacturers and industrial buyers. Our surface-treatment facilities include coating-thickness inspection and salt-spray testing equipment. If an application also involves moisture or corrosion exposure, surface-treatment requirements can be reviewed alongside the sealing configuration.
FAQ
Q: Can I add the enhanced protection package to an existing HB carriage?
A: Retrofit suitability requires confirmation. Send the complete carriage code, photographs and available installation space so JSM can check compatibility before replacement parts are.
Q: Can a JSM carriage replace another brand's carriage on an existing rail?
A: Do not assume compatibility based on nominal size alone. Provide the existing rail and carriage identification, mounting dimensions and required accuracy for review.
Q: Can replacement wipers and scrapers be ordered separately?
A: Contact JSM with the carriage model and protection code to confirm accessory availability. Include a photograph of the existing components if the original order information is unavailable.
Q: What are the minimum order quantity and lead time?
A: Request confirmation for the exact assembly specification and quantity. These should be agreed in the quotation rather than assumed from the product size alone.
