Product Overview
The stainless steel linear guide rail bearing CNC is a precision mechanical component used in CNC machine tools and automated systems. Its function is to guide linear motion while bearing moderate loads, enabling more stable operation of machinery.
Why Choose Stainless Steel vs. Carbon Steel Linear Guides?
|
Feature / Metric |
Carbon Steel Linear Guides |
JSM Stainless Steel Linear Guides |
|
Base Material |
Carbon steel construction |
440C stainless steel construction |
|
Corrosion Resistance |
Requires protection against moisture & chemicals |
Inherently corrosion-resistant |
|
Surface Protection |
Often requires plating or protective coating |
Coating-free surface available |
|
Cleanliness |
Coating condition may affect surface cleanliness |
Suitable for cleanliness-sensitive applications |
|
Maintenance |
Higher corrosion-protection requirements in harsh environments |
Reduced maintenance for corrosion-related issues |
Technical Specifications
|
Parameter |
Specification |
|
Product Type |
Stainless Steel Linear Guide Rail Bearing CNC |
|
Guide Rail Material |
440C Stainless Steel |
|
Slider |
Stainless Steel |
|
Ball Retainer |
Stainless Steel Stamping Ball Retainer |
|
Surface Configuration |
Coating-Free |
|
Motion Type |
Linear Reciprocating Motion |
|
Application |
Food Processing, Pharmaceutical & Marine Equipment |
|
Size Options |
Multiple Sizes Available |
|
Rail Length |
Available in Different Lengths; Customization Supported |
Get a Linear Guide Rail Bearing CNC Solutions
Product Features
The stainless steel linear guide rail bearing CNC features:
Corrosion-Resistant
Made of 440C stainless steel to withstand moisture, acids, and alkaline environments.
01
High Rigidity
Features a higher-strength stamped steel ball retainer, suitable for high-frequency reciprocating motion.
02
High Cleanliness
Suitable for clean environments, such as food and medical applications, with a coating-free surface.
03
Rich Options
Comes in various sizes and lengths to accommodate different machine tools.
04

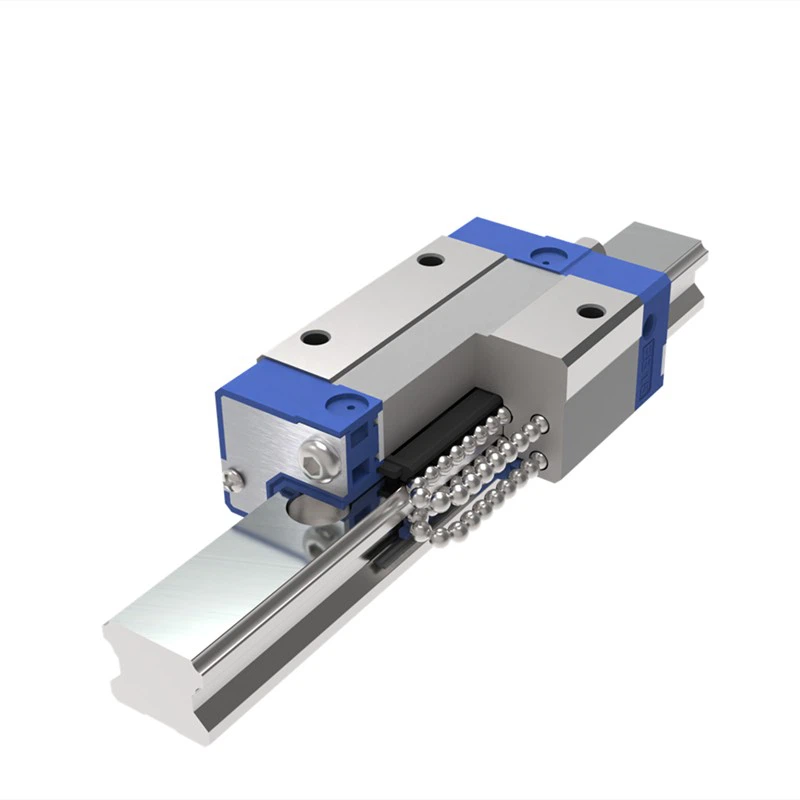

Material & Structural Design
The product combines a 440C stainless steel guide rail with stainless steel moving components to provide a durable linear motion structure for corrosive and cleanliness-sensitive environments.
440C Stainless Steel Guide Rail
The 440C stainless steel guide rail provides the corrosion resistance and mechanical durability required for humid, chemically exposed, and demanding industrial environments.
Stainless Steel Slider
The stainless steel slider maintains the corrosion-resistant construction through the moving carriage, supporting consistent operation where conventional coated or carbon-steel components may be unsuitable.

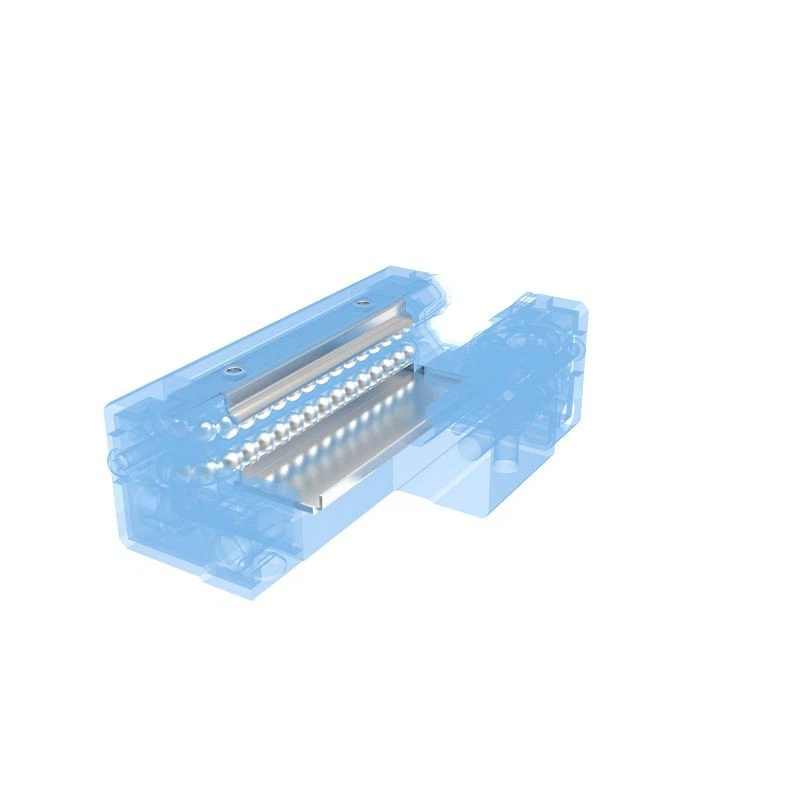

Stainless Steel Stamping Ball Retainer
The stainless steel stamping ball retainer provides a rigid ball-guidance structure designed to support repeated reciprocating motion and stable linear movement.
Application Scenarios
Stainless steel construction makes this linear guide suitable for equipment where corrosion resistance, cleanliness, and stable linear motion must be maintained under demanding operating conditions.
Pharmaceutical Equipment
The stainless steel construction and clean surface configuration support linear motion applications where corrosion resistance and controlled operating conditions are important.
Marine Engineering
The stainless steel structure provides a durable linear motion option for marine equipment exposed to humid and corrosive operating environments.
Food Processing Production Lines
The corrosion-resistant, coating-free configuration is suitable for food processing equipment exposed to moisture and frequent cleaning requirements.
Explore More Industrial Machinery Solutions Explore More Food Processing Equipment Solutions
Manufacturing Capabilities
JSM combines precision machining, application-specific surface treatment, multi-stage quality control, and customized production to support different stainless steel linear guide requirements.
Precision Manufacturing
Surface Treatment Options
Quality Assurance
Custom Linear Guide Solutions
FAQ
Q: Is the slider also made of stainless steel?
A: Yes. The product uses a stainless steel slider together with a stainless steel stamping ball retainer.
Q: Does this linear guide have a coating?
A: The product is designed with a coating-free surface, making it suitable for applications where surface cleanliness is an important consideration.
Q: Can the rail length be customized?
A: Yes. JSM supports customized stainless steel linear guide lengths, with its stainless steel series currently listed for 100–4000 mm configurations.
Q: Can JSM manufacture the linear guide according to our drawings or samples?
A: Yes. JSM provides customization development based on customer drawings or samples and can evaluate application requirements before production.
Q: Can special surface treatments be requested?
A: Yes. Surface treatment can be selected according to application requirements, and JSM provides stainless steel passivation as well as other surface treatment options across its linear guide product range.
Q: What information should we provide for product selection?
A: For a technical recommendation, provide the required rail length and size, load and motion conditions, operating environment, cleanliness or corrosion requirements, and any drawing or installation constraints so the configuration can be evaluated accurately.
